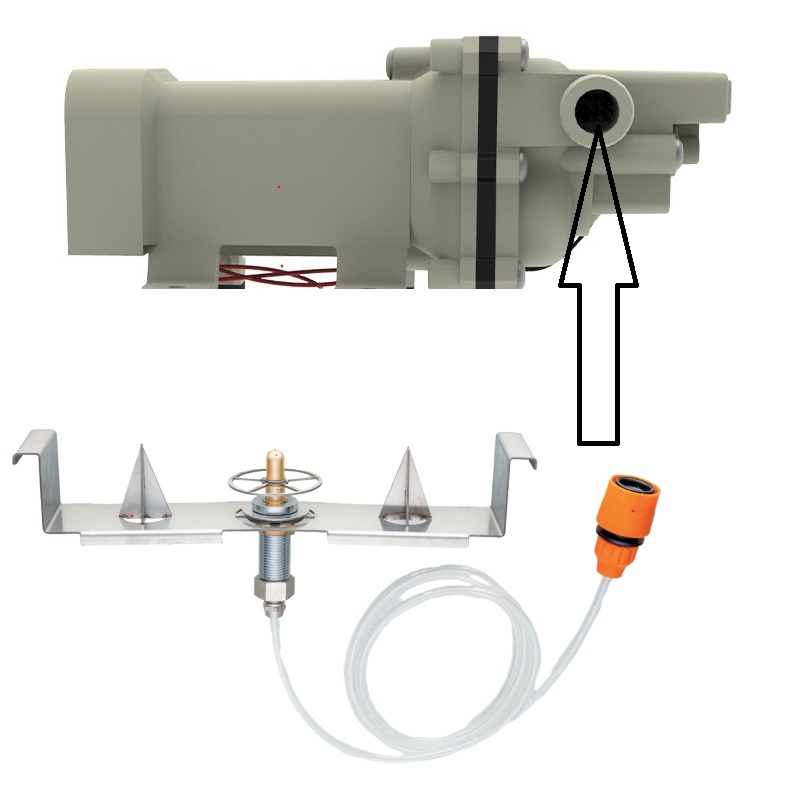

Home Bottle washer SK-100W-01DIAPHRAGM12V/18V/24V/48V PUMP

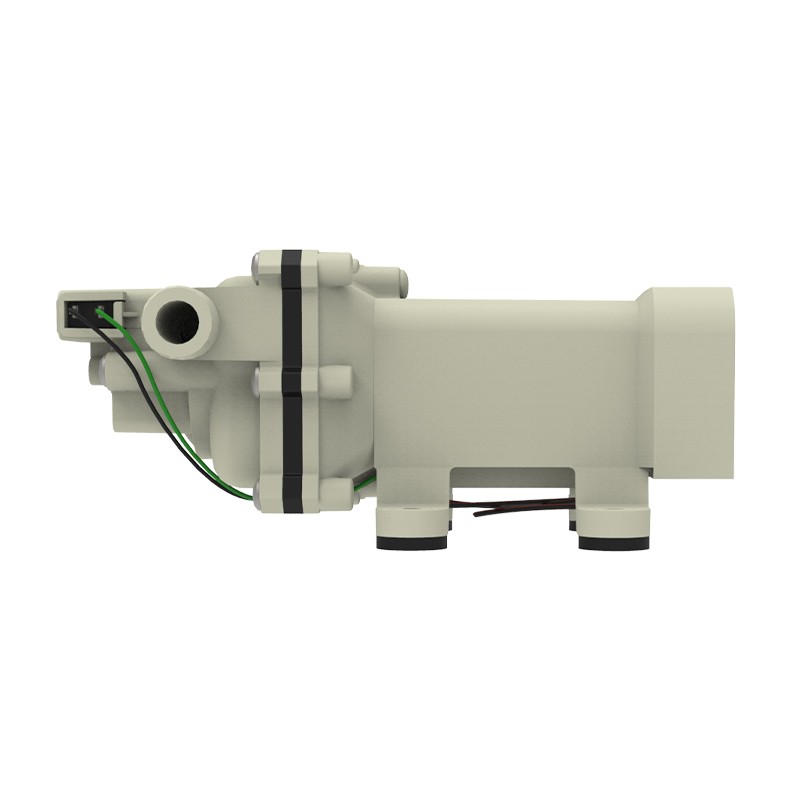

SK-100W-01DIAPHRAGM12V/18V/24V/48V PUMP

  • Self-Priming
  • Can run dry for long time
  • Suction:2.5-3M
  • Heat resistant 60°C
  • Can keep working for long time
Materialattachliquid:

Flow Rate:12.00 LPM

Add to Inquiry

Product detail

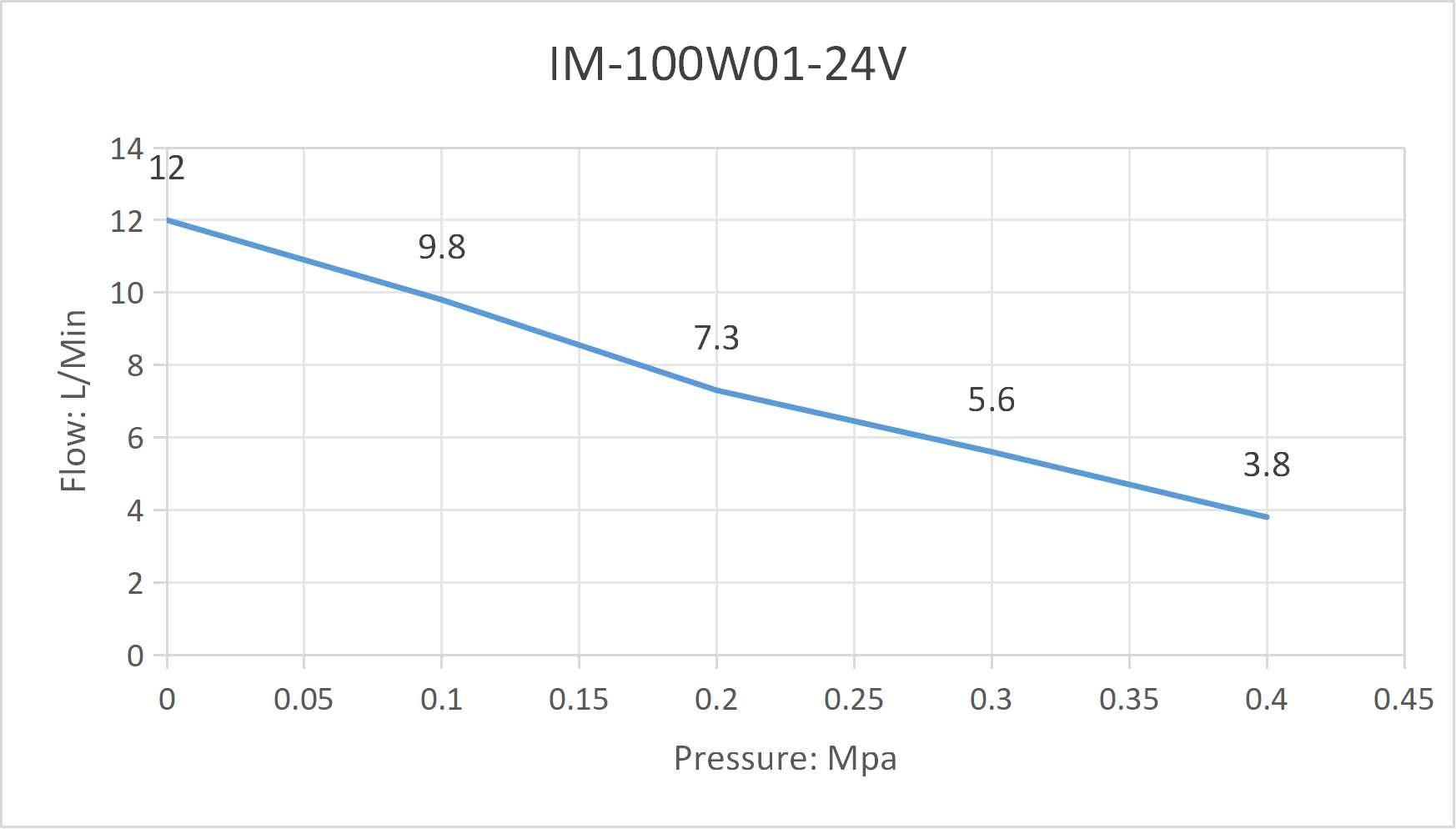

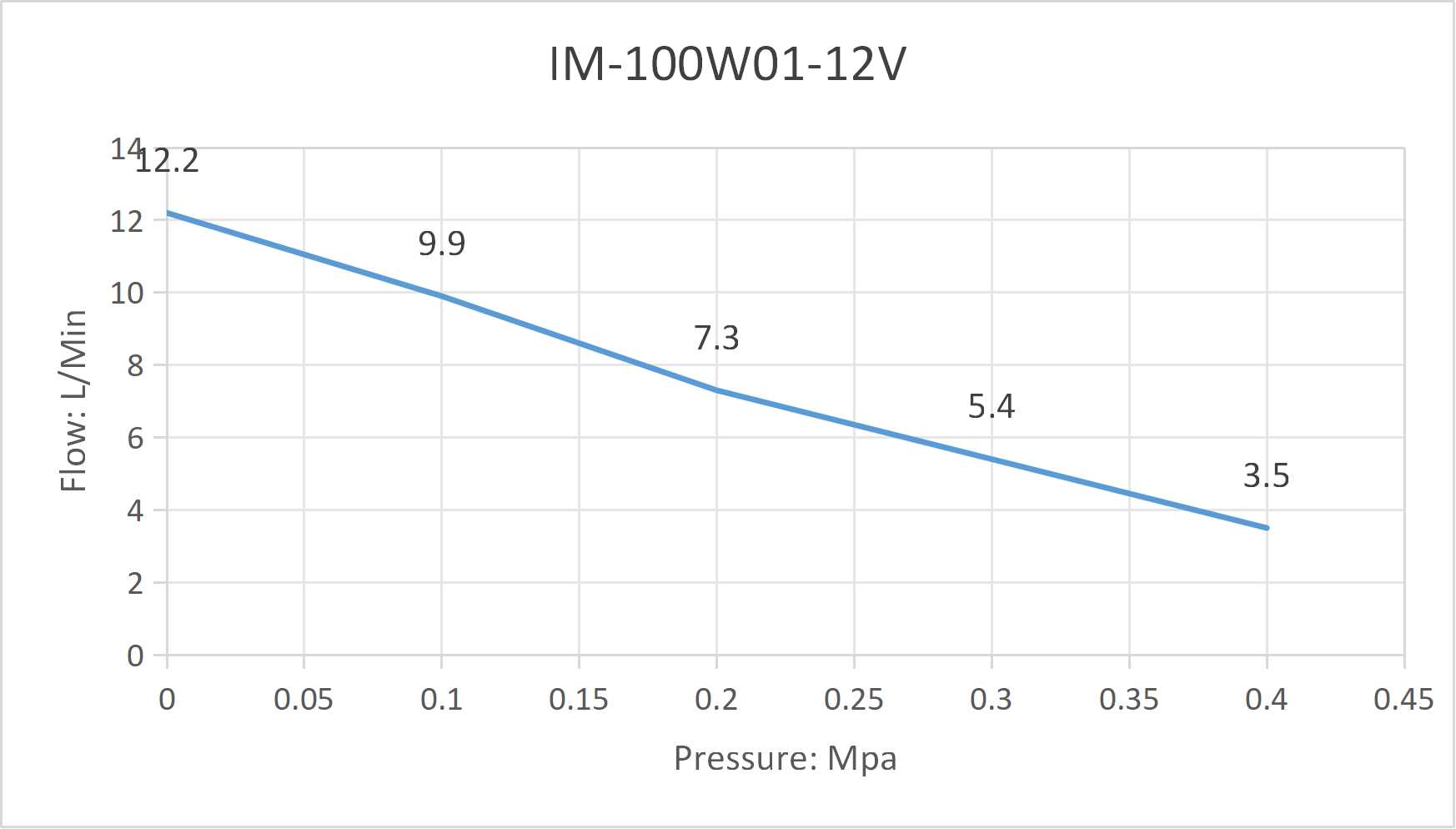

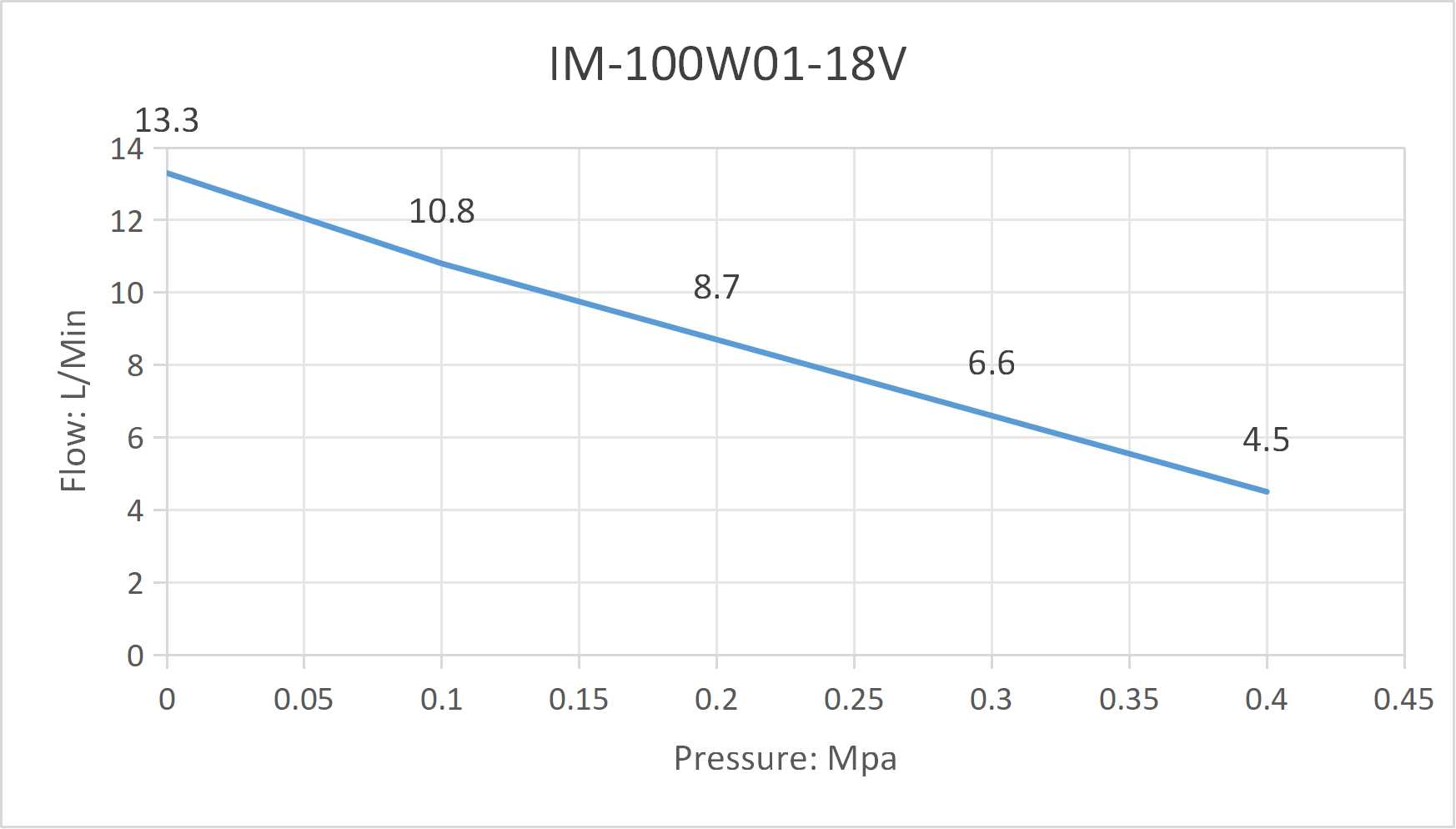

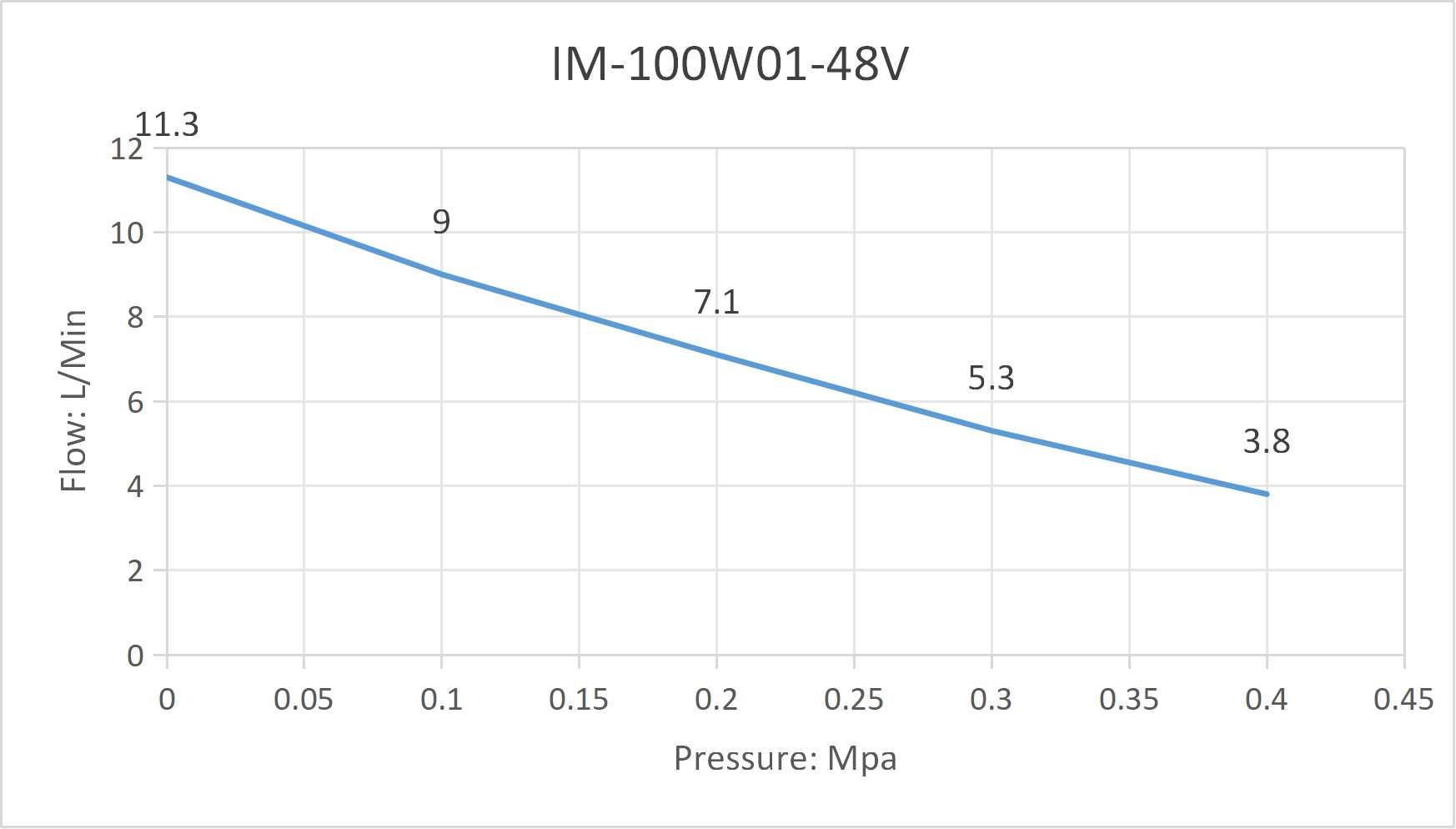

Flow vs. Pressure Correlation

Material attaches the liquid:

PP/TPV/Viton-F      suitable for : Acid and alkaline chemical solution

PP/TPV/EPDM      suitable for : Adblue,light corrosionplastic valve diaphragm



Flow
(L/min)
12.5 10 7.5 5.0 2.5
0/0 0.2/2.9 1/14.5 2/29 3/43.5 4/58
(bar/psi)


Product specification

Voltage Flow Rate Head Control Method Max.Amps Setting Pressure Inlet/Outlet
DC 12V 12.6LPM 25M Pressure switch 7A 0.45Mpa 1/2" Pipe thread
DC 18V 13.8LPM 25M Pressure switch 7A 0.45Mpa 1/2" Pipe thread
DC 24V 13.8LPM 25M Pressure switch 4A 0.45Mpa 1/2" Pipe thread
DC 48V 13.8LPM 25M Pressure switch 2A 0.45Mpa 1/2" Pipe thread
