Features:
Self-Priming
Can run dry for long time
Suction:4M
Heat resistant 60°C
Can keep working for long time
Flow Rate:55.00 LPM
Add to Inquiry
Add to Compare

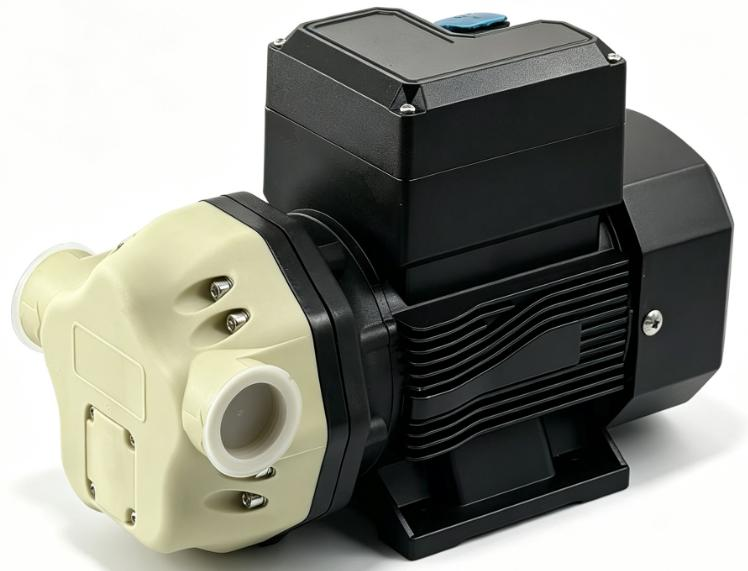

This corrosion-resistant chemical pump is equipped with multiple industry-leading designs, adapted to various harsh industrial usage scenarios
No pre-filling required, it can quickly establish suction capacity once started, simplifying the operation process.
Special structural design allows long-time dry operation without damaging the core components of the pump, reducing failure risks.
The maximum suction lift can reach 4 meters, which can meet the fluid extraction requirements for low-position liquid storage scenarios.
The core components can withstand a maximum working temperature of 60°C, suitable for normal temperature and medium temperature fluid transfer scenarios.
Industrial-grade durable design, supporting long-time uninterrupted continuous operation with excellent stability.
Replaceable diaphragm components of different materials, flexibly adapting to fluid transfer demands of various properties
Wetted Part Material: PP/TPV/Viton-F
Suitable for the transfer of various acidic and alkaline chemical solutions, with strong corrosion resistance, perfect for high-corrosion chemical fluid scenarios.
Applicable Scenarios: AdBlue Urea Solution, Light Corrosion Fluids
Optimized design for light corrosive media such as automotive urea, which maintains excellent performance while delivering higher cost-effectiveness.
| Model | SK-110V-CF-AQUA-2P □ SK-220V-CF-AQUA-2P □ |
SK-110V-CF-AQUA-4P □ SK-220V-CF-AQUA-4P □ |
|---|---|---|
| Open Flow | 15GPM | 6GPM |
| Max Pressure | 35PSI | 35PSI |
| Max Power | 370W | 370W |
| Suction | 4M | 4M |
| Head (Lift) | 20M | 20M |
| Inlet/Outlet Size | 1Inch | 1Inch |
| Valve Material | □VMQ □EPDM □FKM □PP | □VMQ □EPDM □FKM □PP |
| Diaphragm Material | TPV | TPV |
| Motor Speed | 2800R/Min | 1400R/Min |
